SPECIFICATIONS



Accessory Type: GPS WlFl 4G Antenna

Brand Name: T'EYES

Built-in CD player: No

Built-in DVD Player: No

Built-in Screen: Yes

Certification: CE,EAC,FCC,pse,weee

Chipset: 6490

Digital Media Format: Mp3,MP4,WMA,JPEG

Din: One Din

Display Size: 10.2"

High-concerned chemical: None

Interface: USB3.0

Is touch screen: Yes

Item Size: 9.5 inch

Item Weight: 1.5

Material: PCB + Hardware + Screen

OSD Language: Chinese (Simplified),Chinese (Traditional),German,Russian,French,Korean,Japanese,Spanish,Italian,English

Operating System: Android 13

Out Power: 4*45W

Output Type: Colored

Preset Station: YES

Processor Speed: 2.7GHz

Processor Type: 8core

RAM: 8G

ROM: 128G

Resolution: 2000*1200

Special Features: wifi function,Support 3G Network,Support 4G Network,Support Can-Bus,Built-in GPS,Mobile Phone,MP3 players,Voice Control,dsp,CarPlay,android auto,Reversing Input,Split Screen,Remote Controller Included,Support steering wheel control

TF/Micro SD Slot: 3

Tuner Type: FM AM

Voltage: 12 V

Warranty: 12

NOTE: Our harness is not compatible with BOSE

NOTE: DO NOT power the vehicle on without the A/C controls plugged in, otherwise the programming of the vents, A/C and heater controls will be messed up and you will then require a auto electrician to reset the A/C system.

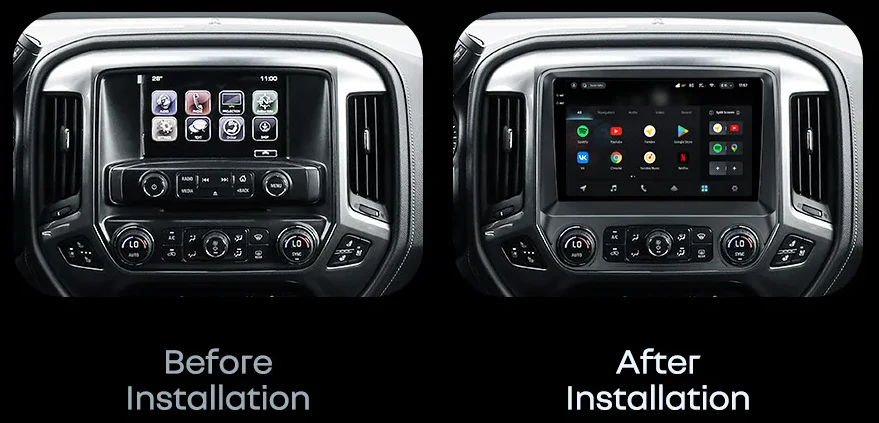

When install is completed, set the car to ignition (do not start the engine) and let the A/C vents cycle for 20 seconds before turning it on.

NOTE: For issues with steering controls and/or cruise control, see (here)

NOTE: Connect the supplied speaker for vehicles chimes

NOTE: It has been reported that parking sensors are working

NOTE: It has been reported in one instance where the reverse camera was not retained. If you find that it is impossible to get the OEM rear camera working. You may need this retention harness (here)

NOTE: Steering or cruise control issues you can see this guide (here)

NOTE: Use one of these 2 Can box settings if the other is not working.
