SPECIFICATIONS



Brand Name: TEyes

Din: One Din

Display Size: 9"

Digital Media Format: Mp3

Digital Media Format: MP4

Digital Media Format: WMA

Digital Media Format: JPEG

Special Feature: wifi function

Special Feature: Support Steering Wheel Control

Certification: CE

Certification: EAC

Special Features: Built-in GPS

Special Features: Mobile Phone

Special Features: MP3 players

Operating System: Android

NOTE: There has been 2 instances where the hazard button "failed". However factory reseting the device has rectified it.

NOTE: If you have an OEM amplifier, you must connect the blue AMP cable to G3 accessories, or to the blue AMP-C (if you have it) for the amplifier to turn on, otherwise you will not have sound.

NOTE: If you want steering phone controls, then G7 needs to be connected to the vehicle side in order for it to be mapped and working. This is common for most canbus controllers not supporting analogue side of steering controls.

Canbus Setting for B - RZC --> HONDA --> CRV --> 2015

WARNING: If you have a Bose sound system, you may need to change the audio outputs from the G plug to the L port so that you have unamplified signals going to the amplifer or you may get buzzing or hissing sounds from the speakers. Do not purchase if you don't intend on making this modification.

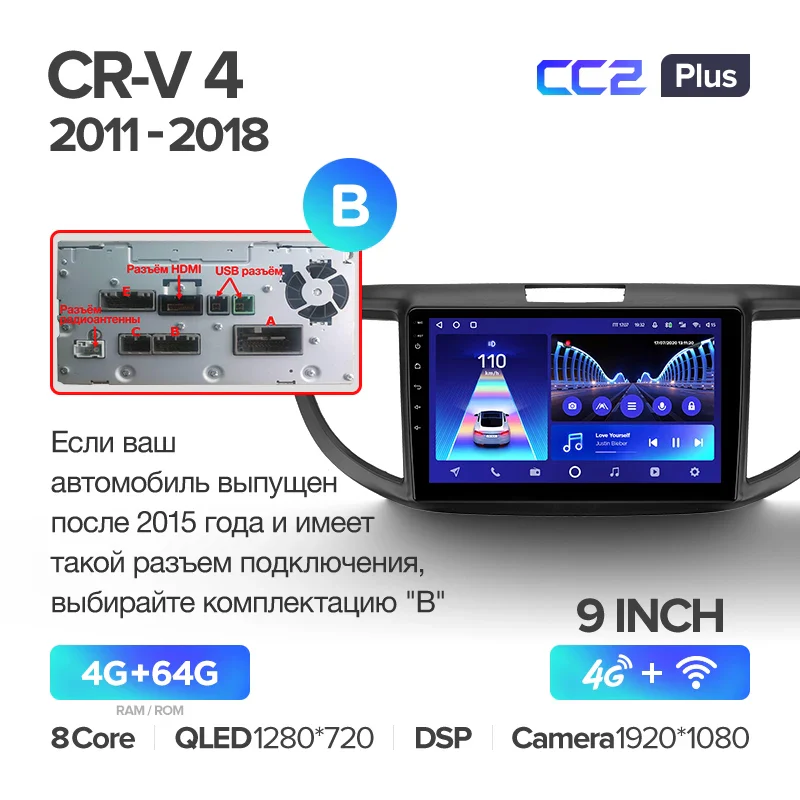

NOTE: If your head unit looks like this, choose B.

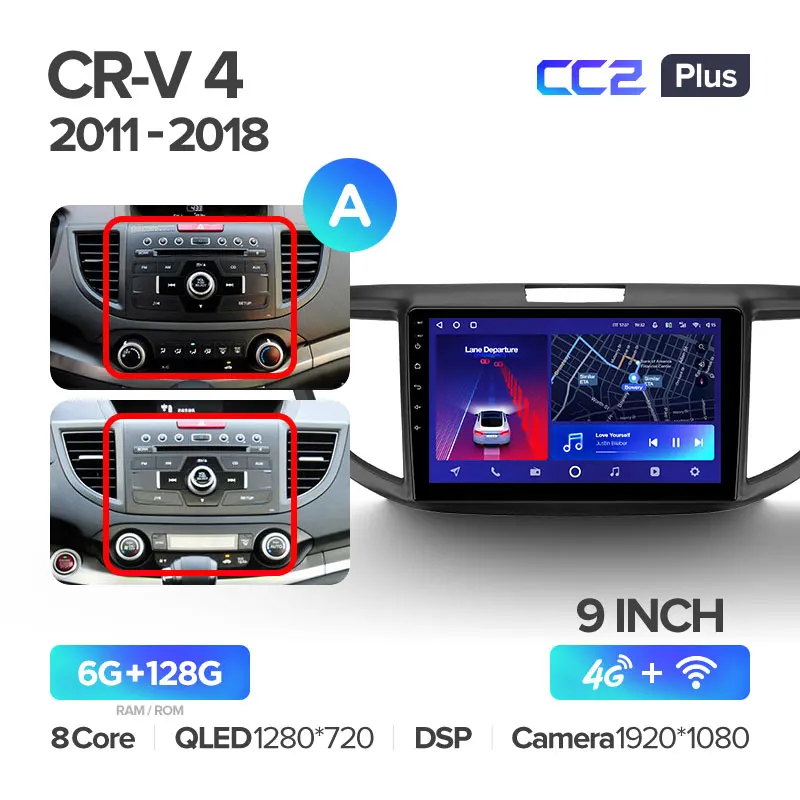

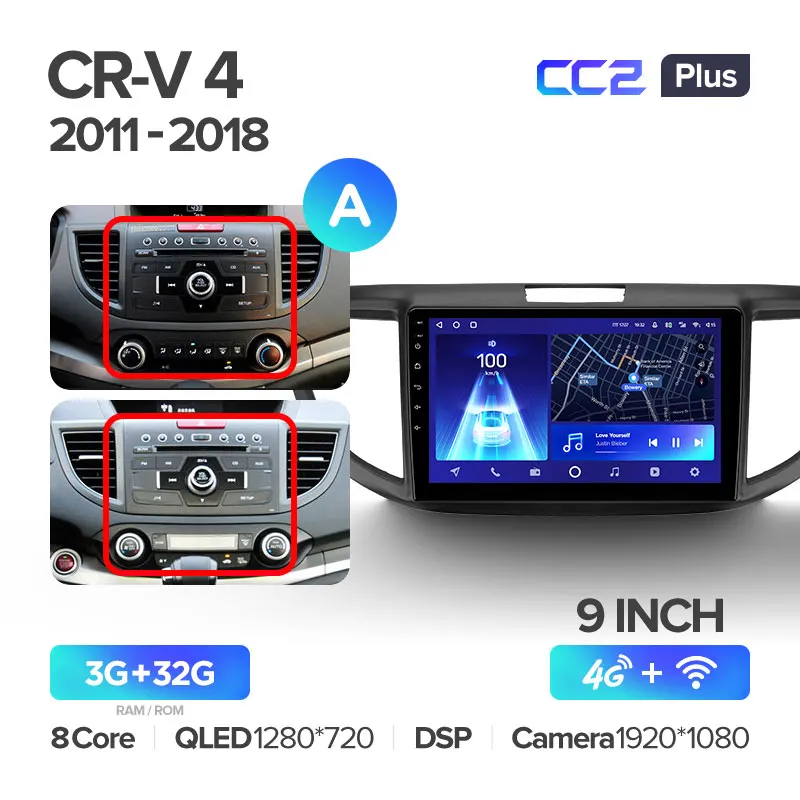

NOTE: If your head unit looks like this, it is compatible - please check the rear of the head unit to confirm its suitability for A, B or C

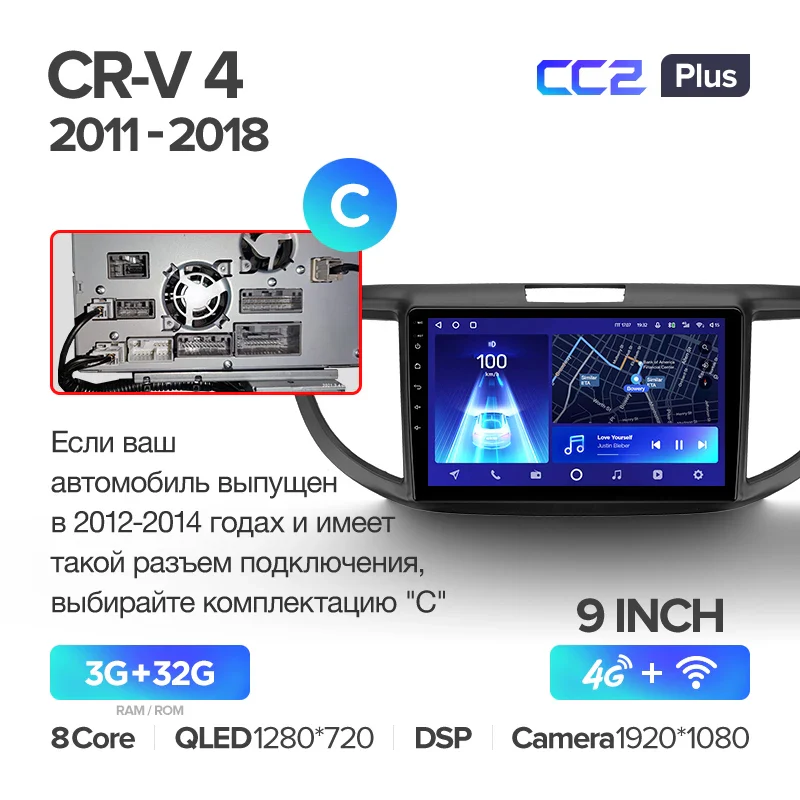

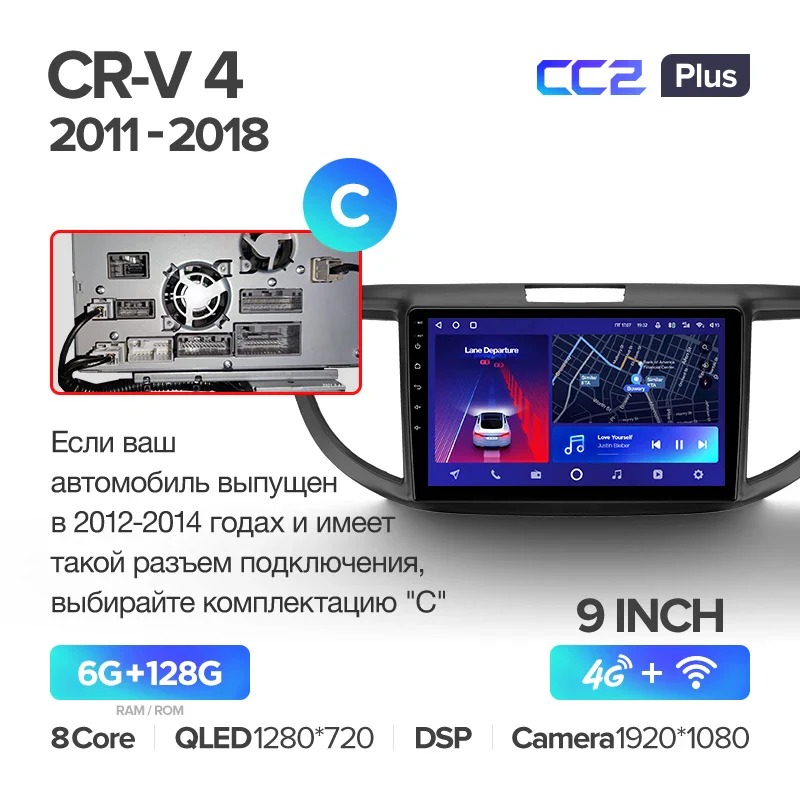

NOTE: The below head unit is a C type

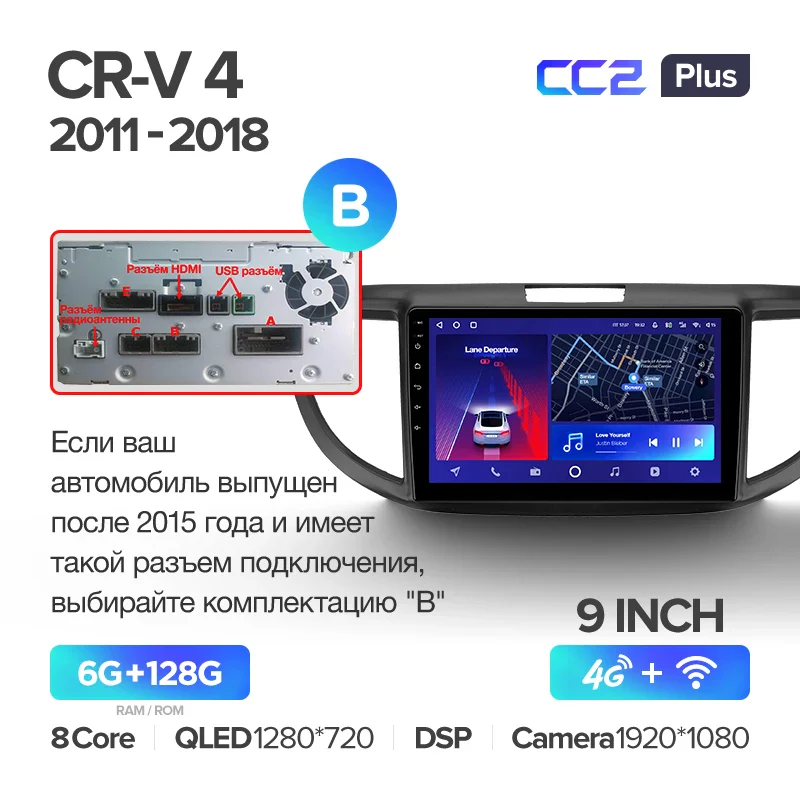

NOTE: The below head unit rear is Option B. Steering controls have not been proven yet. The factory reverse camera is not compatible.
