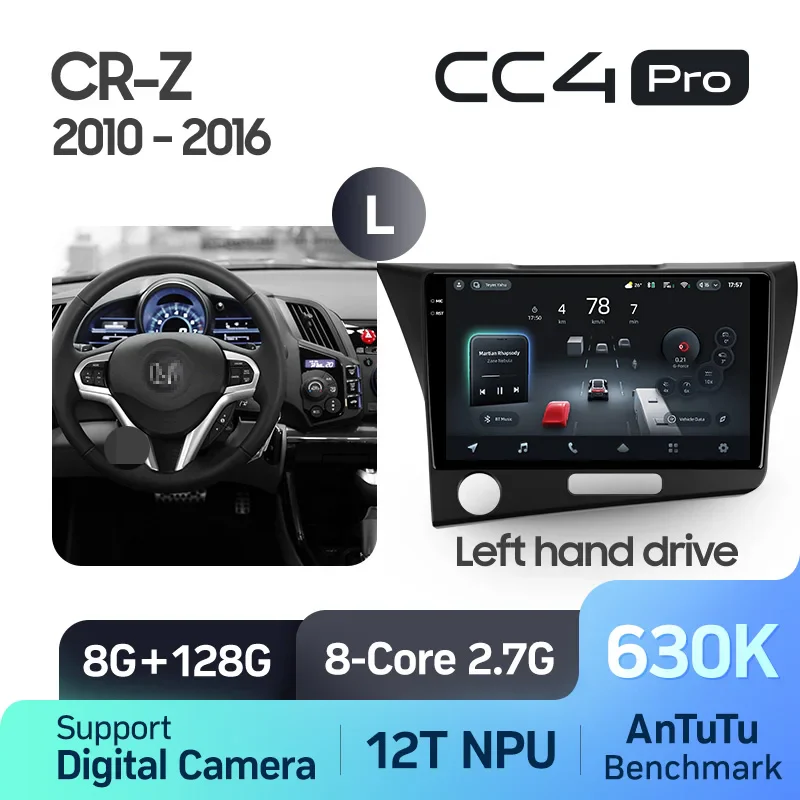

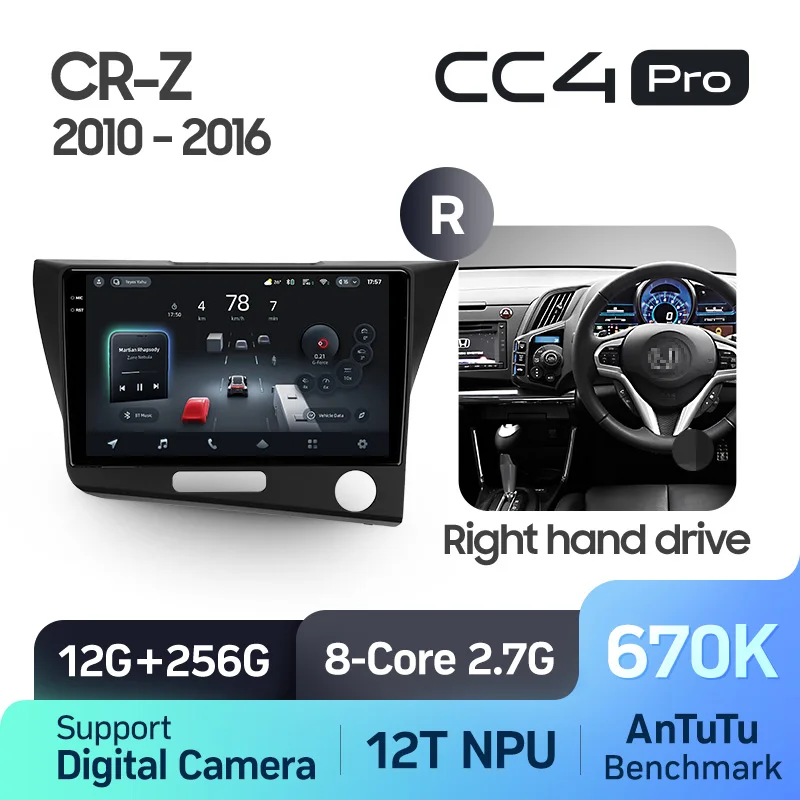

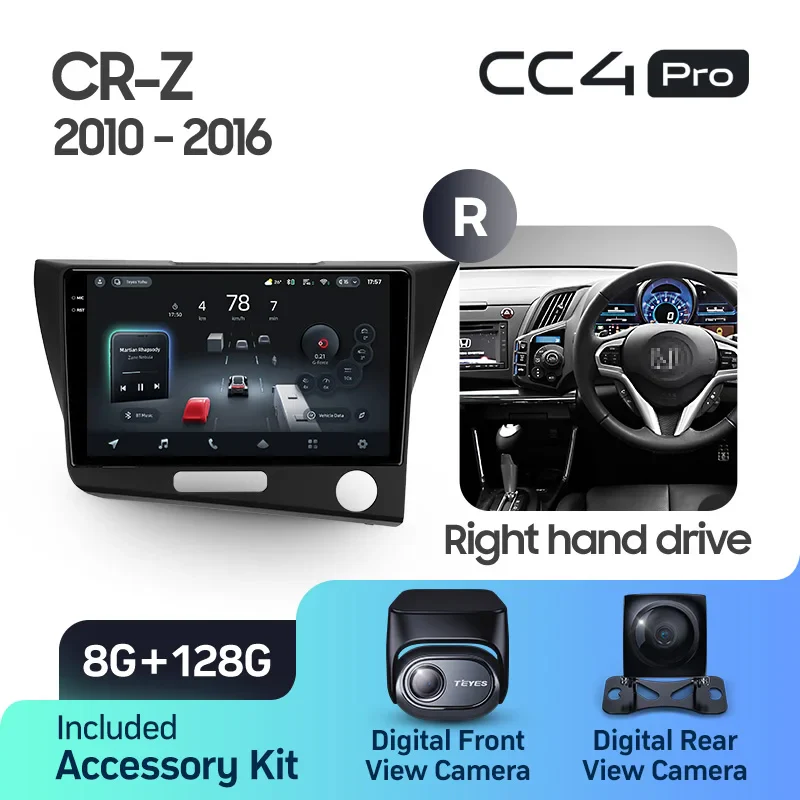

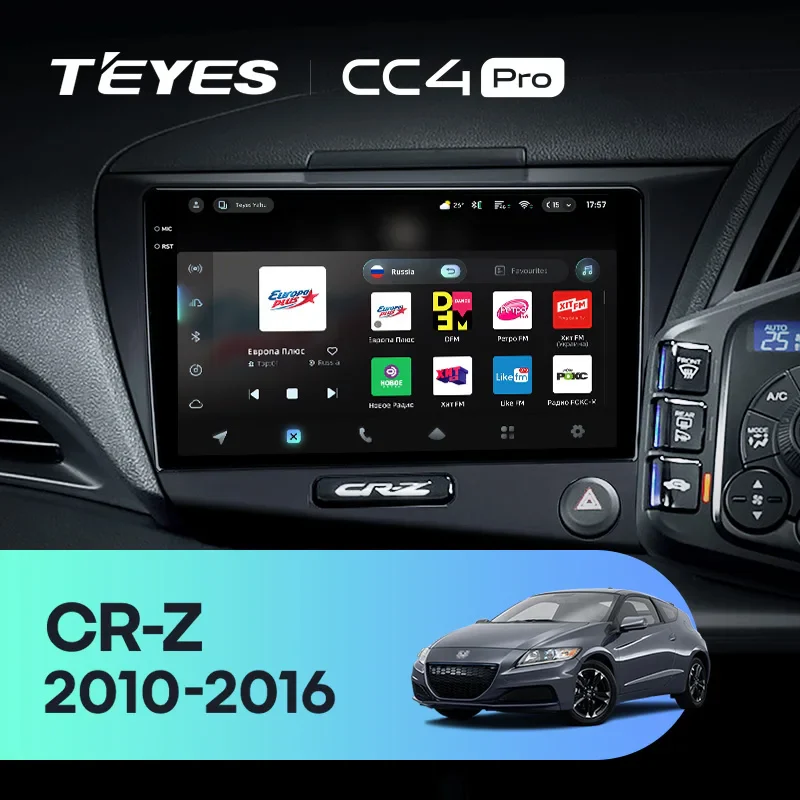

Honda CR-Z 1 CRZ LHD RHD (2010-2016)

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14

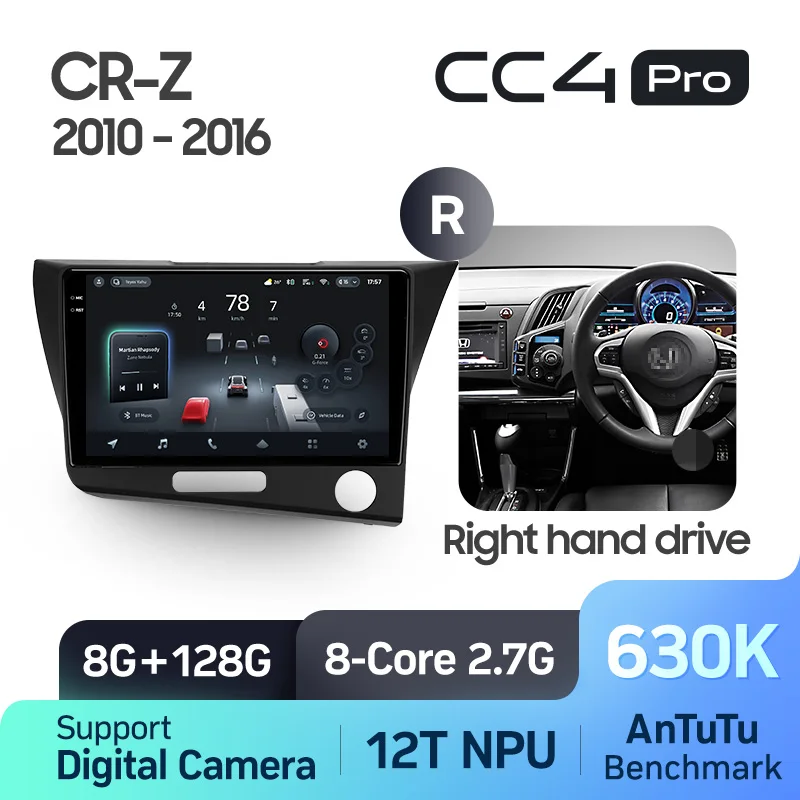

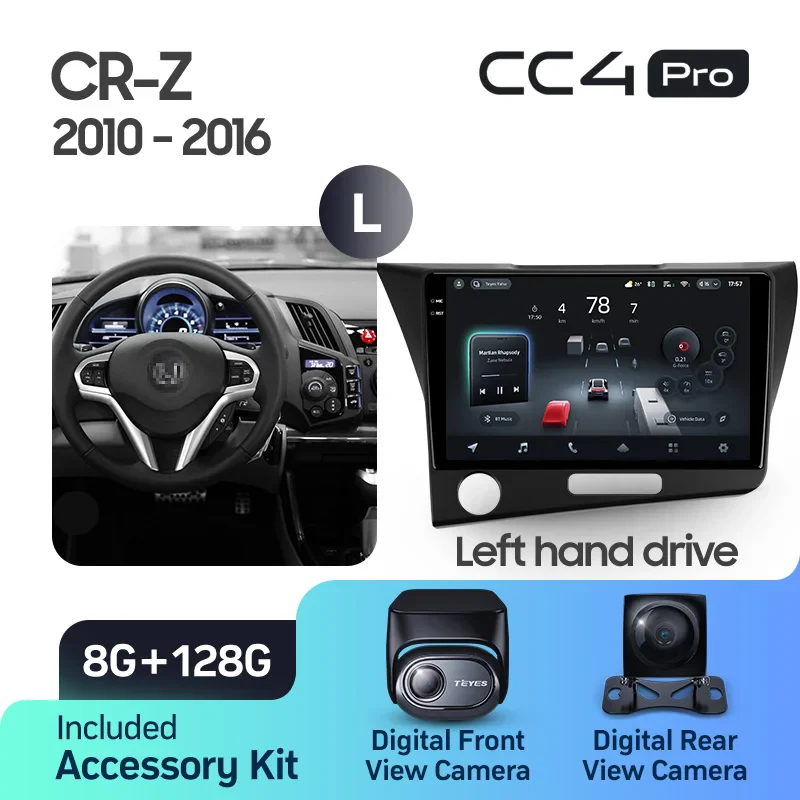

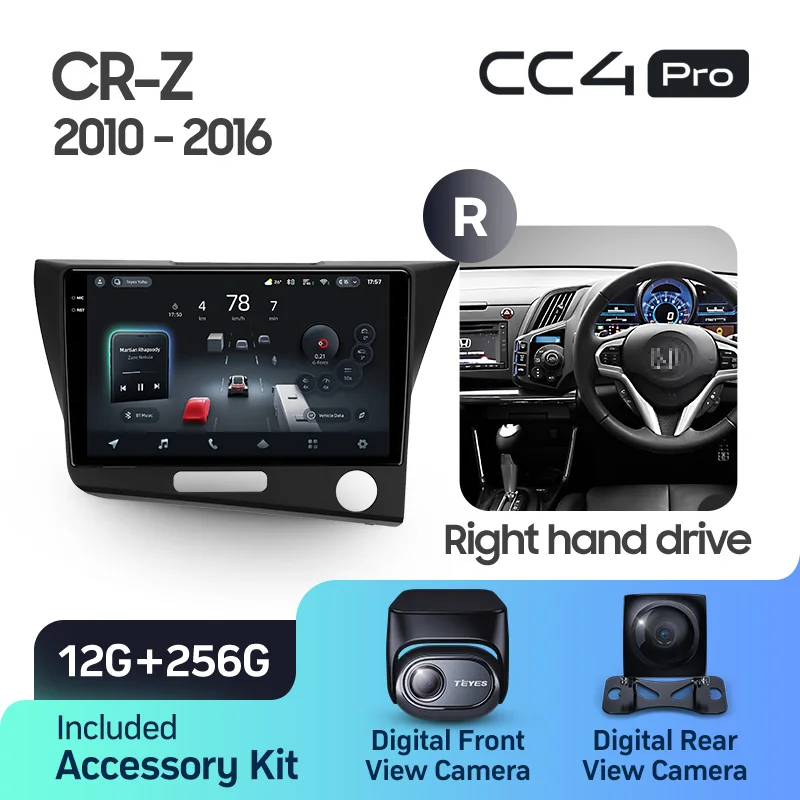

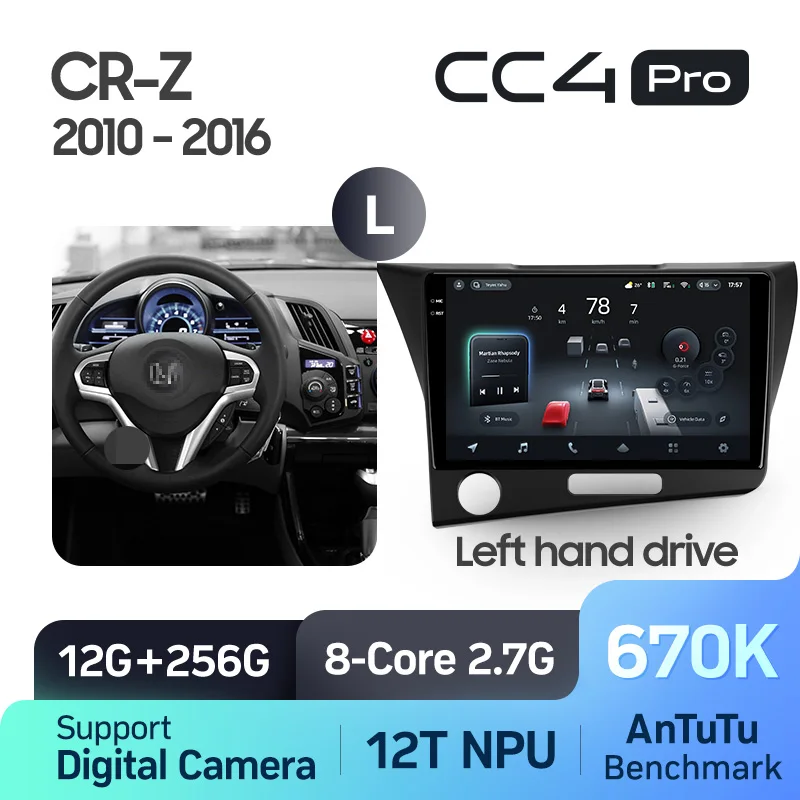

Honda CR-Z 1 CRZ LHD RHD (2010-2016)

Honda CR-Z 1 CRZ LHD RHD (2010-2016)

SPECIFICATIONS

Ā

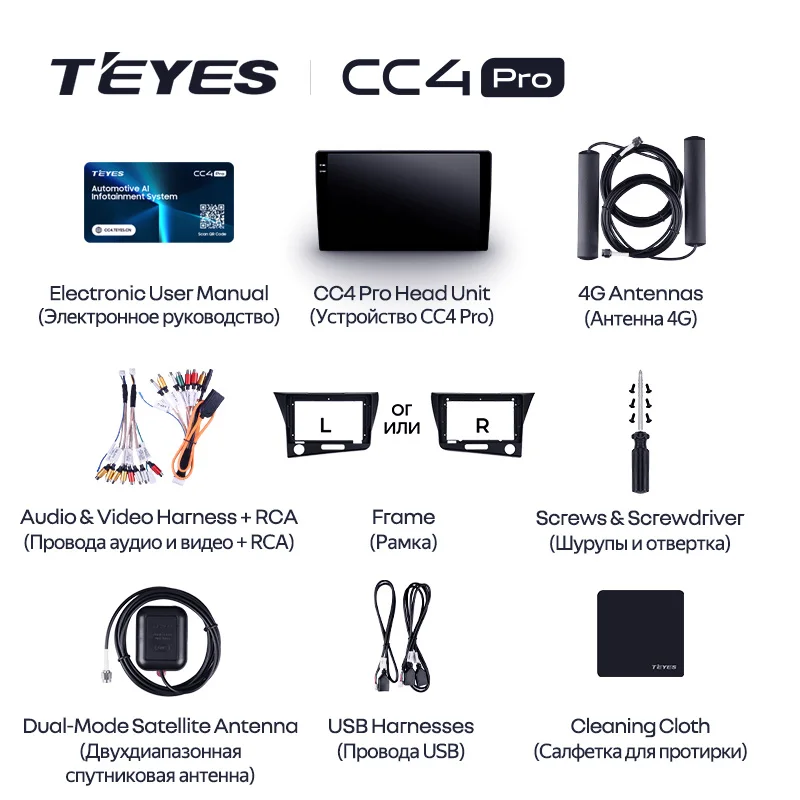

Accessory Type: GPS WIFI 4G antenna

Brand Name: T'EYES

Built-in CD player: No

Built-in DVD Player: No

Built-in Screen: Yes

Certification: CE,EAC,FCC,pse,weee

Chipset: 6490

Digital Media Format: Mp3,MP4,WMA,JPEG

Din: One Din

Display Size: 9"

High-concerned chemical: None

Interface: USB3.0

Is touch screen: Yes

Item Size: 9.5inch

Item Weight: 1.5

Material: PCB+hardware+Screen

OSD Language: Chinese (Simplified),Chinese (Traditional),German,Russian,French,Korean,Japanese,Spanish,Italian,English

Operating System: Android 13

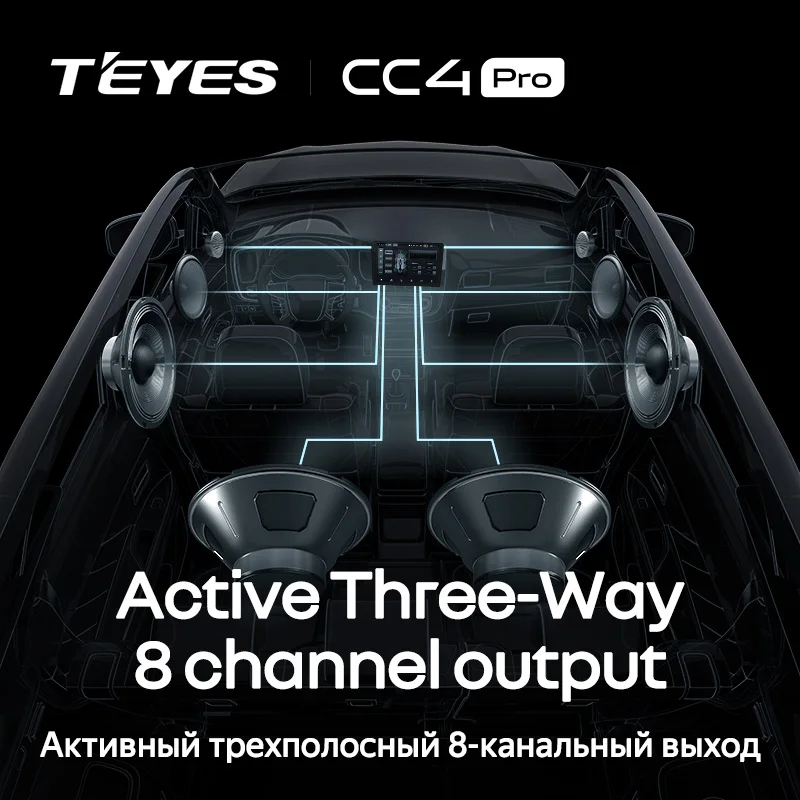

Out Power: 4*45W

Output Type: Colored

Preset Station: YES

Processor Speed: 2.7GHz

Processor Type: 8core

RAM: 8G

ROM: 128G

Resolution: 2000*1200

Special Features: wifi function,Support 3G Network,Support 4G Network,Support Can-Bus,Built-in GPS,Mobile Phone,MP3 players,Voice Control,dsp,CarPlay,android auto,Reversing Input,Split Screen,Remote Controller Included,Support steering wheel control

TF/Micro SD Slot: 3

Tuner Type: FM AM

Voltage: 12 V

Warranty: 12

NOTE: If you have a factory amplifier and experience humming, you may need to install HI-Low convertors on the Front left and right speakers of the CC4 that output to the amplifier.

NOTE: If you haveĀ lane watch,Ā you will require a different harness, you must contact us before purchase to organise.

NOTE: There may be 2 blue amp wires coming from the harness plug, connect one of them to the A port Blue AMP-C. One may not work, so choose the other.



NOTE: If your head unit looks like this and has subwoofer, it is compatible


Honda CR-Z 2011 16582

Vehicle Make: Honda Model: Cr-z Year: 2014Honda Cr-z apple carplay
WARNING!!!

NOTE: If using the harness with canbus -Ā

1. Connect Blue AMP to Blue AMP-C

2: Amp output should be turned up if you have no sound. This will allow the factory amp to turn on.


NOTE: If you have the Premium Audio System with factory AMP and subwoofer and connection Blue AMP-C to Blue AMP as above does not give you sound, to turn on the factory amp you may have to connect KEY2 fromĀ the main wiring harness to AMP-C on the accessory harness instead.

KEY2 corresponds to pin A21, and AMP-CON matches to pin A18. Please check to see if this is the same case for you

NOTE:Ā The pinouts for the main connector on the CR-Z with navigation and without navigation are found (here)


CR-Z with premium audio system
CR-Z with premium Audio system

IMPORTANT: If your head unit looks like this, it is compatible but the standard provided harness will not work with Lanewatch. You must order this harness

honda crz 2016 10238
