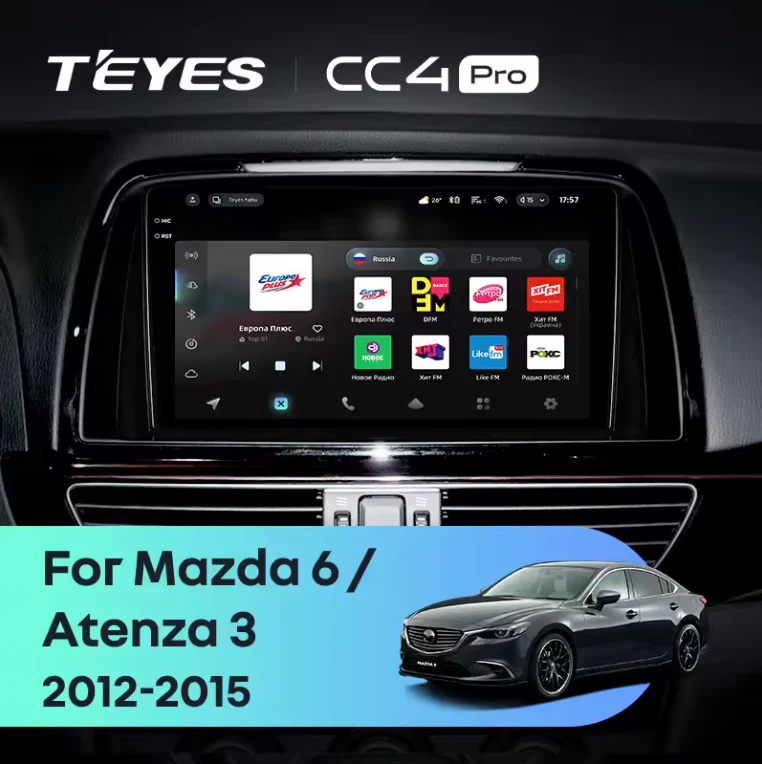

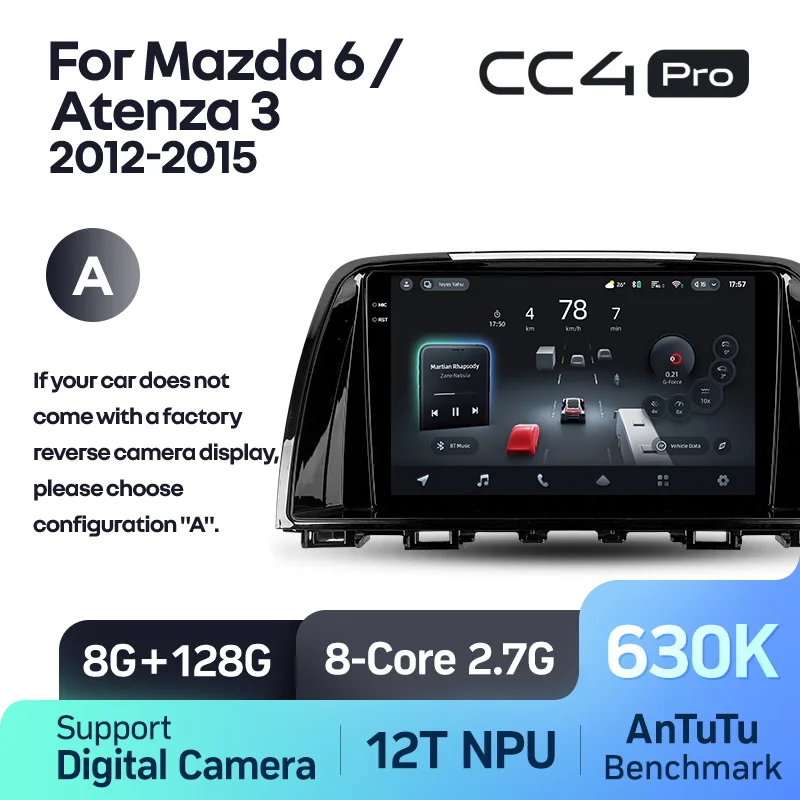

Mazda 6 Atenza 3 GJ (2012-2015)
SPECIFICATIONS
Ā
6-Year: 2012,2013,2014,2015
Accessory Type: GPS WlFl 4G Antenna
Brand Name: T'EYES
Built-in CD player: No
Built-in DVD Player: No
Built-in Screen: Yes
Certification: CE,EAC,FCC,pse,weee
Chipset: 6490
Digital Media Format: Mp3,MP4,WMA,JPEG
Din: One Din
Display Size: 9"
For Vehicle Brands/Model: MAZDA
High-concerned chemical: None
Interface: USB3.0
Is touch screen: Yes
Item Size: 9.5 inch
Item Weight: 1.5
Material: PCB + Hardware + Screen
Mazda Model: 6
OSD Language: Chinese (Simplified),Chinese (Traditional),German,Russian,French,Korean,Japanese,Spanish,Italian,English
Operating System: Android 13
Out Power: 4*45W
Output Type: Colored
Preset Station: YES
Processor Speed: 2.7GHz
Processor Type: 8Core
RAM: 8G
ROM: 128G
Resolution: 2000*1200
Special Features: wifi function,Support 3G Network,Support 4G Network,Support Can-Bus,Built-in GPS,Mobile Phone,MP3 players,Voice control,dsp,CarPlay,android auto,Reversing Input,Split Screen,Remote Controller Included,Support steering wheel control
TF/Micro SD Slot: 3
Tuner Type: FM AM
Voltage: 12 V
Warranty: 12
NOTE: After market interior LEDs can cause screen flicker and dimming issues. PleaseĀ especiallyĀ check for LED in the globe box.
NOTE: Supports Bose audio, if you experience hissing please see here
NOTE: Some buzzing has been attributed to the OEM USB Mazda retention cable. Try to disconnect to test.
NOTE: If you have amplifier, connect the Blue AMP and Blue AMP-C wires together to engage theĀ amplifierĀ or you will not get sound. Make sure in the sound settingsĀ that AMP is selected to the ON position.
If this does not output 12VDC on BLUE AMP-C wire, Connect the BLUE AMP cable to G3 accessories instead.
Mazda B optionĀ 24Pin plug pinout (here)
NOTE: Supports center controller

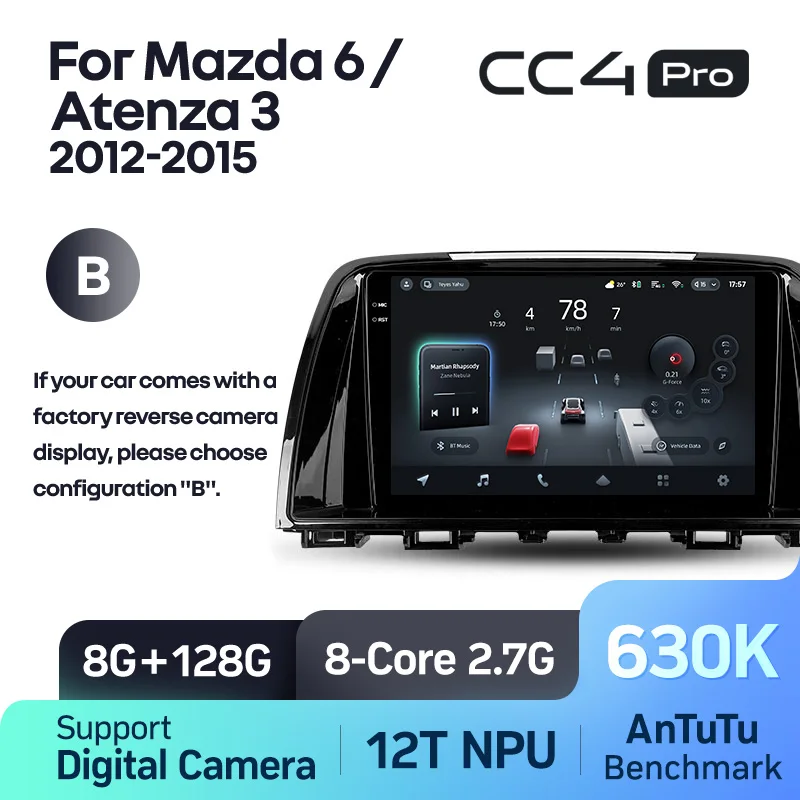

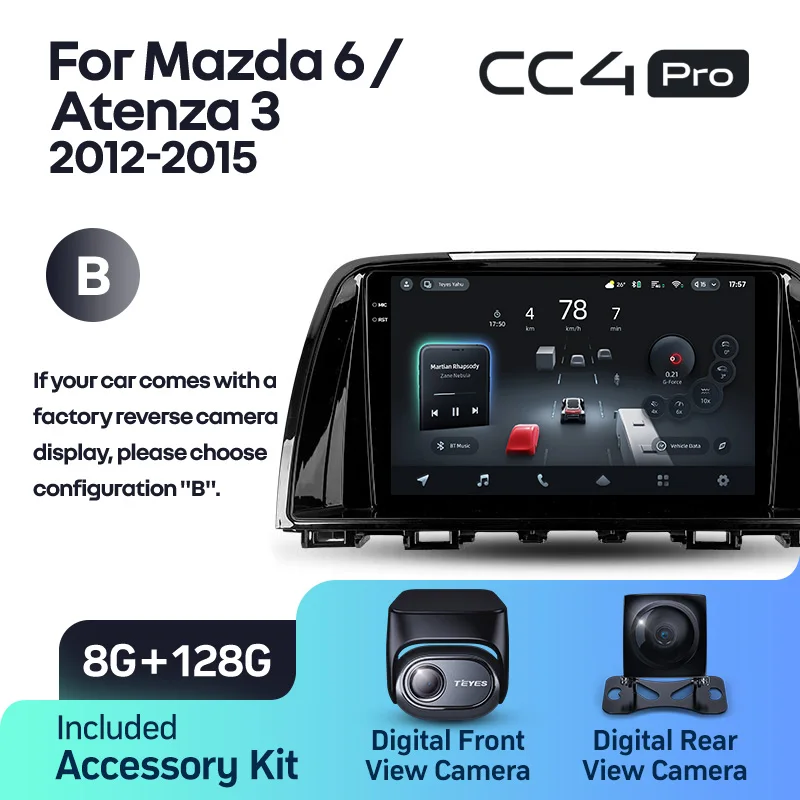

NOTE: The below head unit is supported and should select option B
Ā
For this head unit uses LK 220418 -XP harness
Ā
NOTE: For this head unit uses LK 220418 -XP harness HOWEVER the steering controls are not supported. You will need to try make your own modification to get them to work. We do not have a solution for this yet
